Snikket Private XMPP Chat on Oracle Cloud Free Tier

Non-technical users deserve private communications, too.

I shared a few months back about the steps I took to deploy my own Matrix homeserver instance, and I've happily been using the Element client for secure end-to-end encrypted chats with a small group of my technically-inclined friends. Being able to have private conversations without having to trust a single larger provider (unlike like Signal or WhatsApp) is pretty great. Of course, many Matrix users just create accounts directly on the matrix.org homeserver which kind of hurts the "decentralized" aspect of the network, and relatively few bother with hosting their own homeserver. There are also multiple options for homeserver software and dozens of Matrix clients each with their own set of features and limitations. As a result, an individual's experience with Matrix could vary wildly depending on what combination of softwares they are using. And it can be difficult to get non-technical users (like my family) on board with a new communication platform when iMessage works just fine1.

I recently came across the Snikket project, which aims to make decentralized end-to-end encrypted personal messaging simple and accessible for everyone, with an emphasis on providing a consistent experience across the network. Snikket does this by maintaining a matched set of server and client2 software with feature and design parity, making it incredibly easy to deploy and manage the server, and simplifying user registration with invite links. In contrast to Matrix, Snikket does not operate an open server on which users can self-register but instead requires users to be invited to a hosted instance. The idea is that a server would be used by small groups of family and friends where every user knows (and trusts!) the server operator while also ensuring the complete decentralization of the network3.

How simple is the server install?

Seriously, their 4-step quick-start guide is so good that I didn't feel the need to do a blog post about my experience. I've now been casually using Snikket for a bit over month and remain very impressed both by the software and the project itself, and have even deployed a new Snikket instance for my family to use. My parents were actually able to join the chat without any issues, which is a testament to how easy it is from a user perspective too.

A few days ago I migrated my original Snikket instance from Google Cloud (GCP) to the same Oracle Cloud Infrastructure (OCI) virtual server that's hosting my Matrix homeserver so I thought I might share some notes first on the installation process. At the end, I'll share the tweaks which were needed to get Snikket to run happily alongside Matrix.

Infrastructure setup

You can refer to my notes from last time for details on how I created the Ubuntu 20.04 VM and configured the firewall rules both at the cloud infrastructure level as well as within the host using iptables. Snikket does need a few additional firewall ports beyond what was needed for my Matrix setup:

Port(s) Transport Purpose
80, 443 TCP Web interface and group file sharing
3478-3479 TCP/UDP Audio/Video data proxy negotiation and discovery (STUN/TURN)
5349-5350 TCP/UDP Audio/Video data proxy negotiation and discovery (STUN/TURN over TLS)
5000 TCP File transfer proxy
5222 TCP Connections from clients
5269 TCP Connections from other servers
60000-601004 UDP Audio/Video data proxy (TURN data)

As a gentle reminder, Oracle's iptables configuration inserts a REJECT all rule at the bottom of each chain. I needed to make sure that each of my ALLOW rules got inserted above that point. So I used iptables -L INPUT --line-numbers to identify which line held the REJECT rule, and then used iptables -I INPUT [LINE_NUMBER] -m state --state NEW -p [PROTOCOL] --dport [PORT] -j ACCEPT to insert the new rules above that point.

 1sudo iptables -I INPUT 9 -m state --state NEW -p tcp --dport 80 -j ACCEPT
 2sudo iptables -I INPUT 9 -m state --state NEW -p tcp --dport 443 -j ACCEPT
 3sudo iptables -I INPUT 9 -m state --state NEW -p tcp --dports 3478-3479 -j ACCEPT
 4sudo iptables -I INPUT 9 -m state --state NEW -p tcp -m multiport --dports 3478-3479 -j ACCEPT
 5sudo iptables -I INPUT 9 -m state --state NEW -p tcp -m multiport --dports 3478,3479 -j ACCEPT
 6sudo iptables -I INPUT 9 -m state --state NEW -p tcp --dport 5000 -j ACCEPT
 7sudo iptables -I INPUT 9 -m state --state NEW -p tcp --dport 5222 -j ACCEPT
 8sudo iptables -I INPUT 9 -m state --state NEW -p tcp --dport 5269 -j ACCEPT
 9sudo iptables -I INPUT 9 -m state --state NEW -p udp -m multiport --dports 3478,3479 -j ACCEPT
10sudo iptables -I INPUT 9 -m state --state NEW -p udp -m multiport --dports 5349,5350 -j ACCEPT
11sudo iptables -I INPUT 9 -m state --state NEW -p udp -m multiport --dports 60000:60100 -j ACCEPT

Then to verify the rules are in the right order:

 1$ sudo iptables -L INPUT --line-numbers -n
 2Chain INPUT (policy ACCEPT)
 3num  target     prot opt source               destination
 41    ts-input   all  --  0.0.0.0/0            0.0.0.0/0
 52    ACCEPT     all  --  0.0.0.0/0            0.0.0.0/0            state RELATED,ESTABLISHED
 63    ACCEPT     icmp --  0.0.0.0/0            0.0.0.0/0
 74    ACCEPT     all  --  0.0.0.0/0            0.0.0.0/0
 85    ACCEPT     udp  --  0.0.0.0/0            0.0.0.0/0            udp spt:123
 96    ACCEPT     tcp  --  0.0.0.0/0            0.0.0.0/0            state NEW tcp dpt:22
107    ACCEPT     tcp  --  0.0.0.0/0            0.0.0.0/0            state NEW tcp dpt:443
118    ACCEPT     tcp  --  0.0.0.0/0            0.0.0.0/0            state NEW tcp dpt:80
129    ACCEPT     udp  --  0.0.0.0/0            0.0.0.0/0            state NEW multiport dports 5349,5350
1310   ACCEPT     udp  --  0.0.0.0/0            0.0.0.0/0            state NEW multiport dports 60000:60100
1411   ACCEPT     udp  --  0.0.0.0/0            0.0.0.0/0            state NEW multiport dports 3478,3479
1512   ACCEPT     tcp  --  0.0.0.0/0            0.0.0.0/0            state NEW tcp dpt:5269
1613   ACCEPT     tcp  --  0.0.0.0/0            0.0.0.0/0            state NEW tcp dpt:5222
1714   ACCEPT     tcp  --  0.0.0.0/0            0.0.0.0/0            state NEW tcp dpt:5000
1815   ACCEPT     tcp  --  0.0.0.0/0            0.0.0.0/0            state NEW multiport dports 3478,3479
1916   REJECT     all  --  0.0.0.0/0            0.0.0.0/0            reject-with icmp-host-prohibited

Before moving on, it's important to save them so the rules will persist across reboots!

1$ sudo netfilter-persistent save
2run-parts: executing /usr/share/netfilter-persistent/plugins.d/15-ip4tables save
3run-parts: executing /usr/share/netfilter-persistent/plugins.d/25-ip6tables save

I also needed to create three DNS records5 with my domain registrar:

1# Domain                  TTL   Class   Type  Target
2chat.vpot8.ooo            300   IN      A     132.145.174.39
3groups.vpot8.ooo          300   IN      CNAME chat.vpot8.ooo.
4share.vpot8.ooo           300   IN      CNAME chat.vpot8.ooo.

Install docker and docker-compose

Snikket is distributed as a set of docker containers which makes it super easy to get up and running on basically any Linux system. But, of course, you'll first need to install docker

 1# Update package index
 2sudo apt update
 3# Install prereqs
 4sudo apt install ca-certificates curl gnupg lsb-release
 5# Add docker's GPG key
 6curl -fsSL https://download.docker.com/linux/ubuntu/gpg | sudo gpg --dearmor -o /usr/share/keyrings/docker-archive-keyring.gpg
 7# Add the docker repo
 8echo \
 9  "deb [arch=$(dpkg --print-architecture) signed-by=/usr/share/keyrings/docker-archive-keyring.gpg] https://download.docker.com/linux/ubuntu \
10  $(lsb_release -cs) stable" | sudo tee /etc/apt/sources.list.d/docker.list > /dev/null
11# Refresh the package index with the new repo added
12sudo apt update
13# Install docker
14sudo apt install docker-ce docker-ce-cli containerd.io

And install docker-compose also to simplify the container management:

1# Download the docker-compose binary
2sudo curl -L "https://github.com/docker/compose/releases/download/1.29.2/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose
3# Make it executable
4sudo chmod +x /usr/local/bin/docker-compose

Now we're ready to...

Install Snikket

This starts with just making a place for Snikket to live:

1sudo mkdir /etc/snikket
2cd /etc/snikket

And then grabbing the Snikket docker-compose file:

1sudo curl -o docker-compose.yml https://snikket.org/service/resources/docker-compose.beta.yml

And then creating a very minimal configuration file:

1sudo vi snikket.conf

A basic config only needs two parameters:

Parameter Description
SNIKKET_DOMAIN The fully-qualified domain name that clients will connect to
SNIKKET_ADMIN_EMAIL An admin contact for the server

That's it.

In my case, I'm going to add two additional parameters to restrict the UDP TURN port range that I set in my firewalls above.

So here's my config:

1SNIKKET_DOMAIN=chat.vpot8.ooo
2SNIKKET_ADMIN_EMAIL=ops@vpot8.ooo
3
4# Limit UDP port range
5SNIKKET_TWEAK_TURNSERVER_MIN_PORT=60000
6SNIKKET_TWEAK_TURNSERVER_MAX_PORT=60100

Start it up!

With everything in place, I can start up the Snikket server:

1sudo docker-compose up -d

This will take a moment or two to pull down all the required container images, start them, and automatically generate the SSL certificates. Very soon, though, I can point my browser to https://chat.vpot8.ooo and see a lovely login page - complete with an automagically-valid-and-trusted certificate:

Snikket login page

Of course, I don't yet have a way to log in, and like I mentioned earlier Snikket doesn't offer open user registration. Every user (even me, the admin!) has to be invited. Fortunately I can generate my first invite directly from the command line:

1sudo docker exec snikket create-invite --admin --group default

That command will return a customized invite link which I can copy and paste into my browser.

Snikket invite page

If I've got a mobile device handy, I can go ahead and install the client there to get started; the app will even automatically generate a secure password6 so that I (and my users) don't have to worry about it. Otherwise, clicking the register an account manually link at the bottom of the screen lets me create a username and password directly.

With shiny new credentials in hand, I can log in at the web portal to manage my account or access the the admin panel.

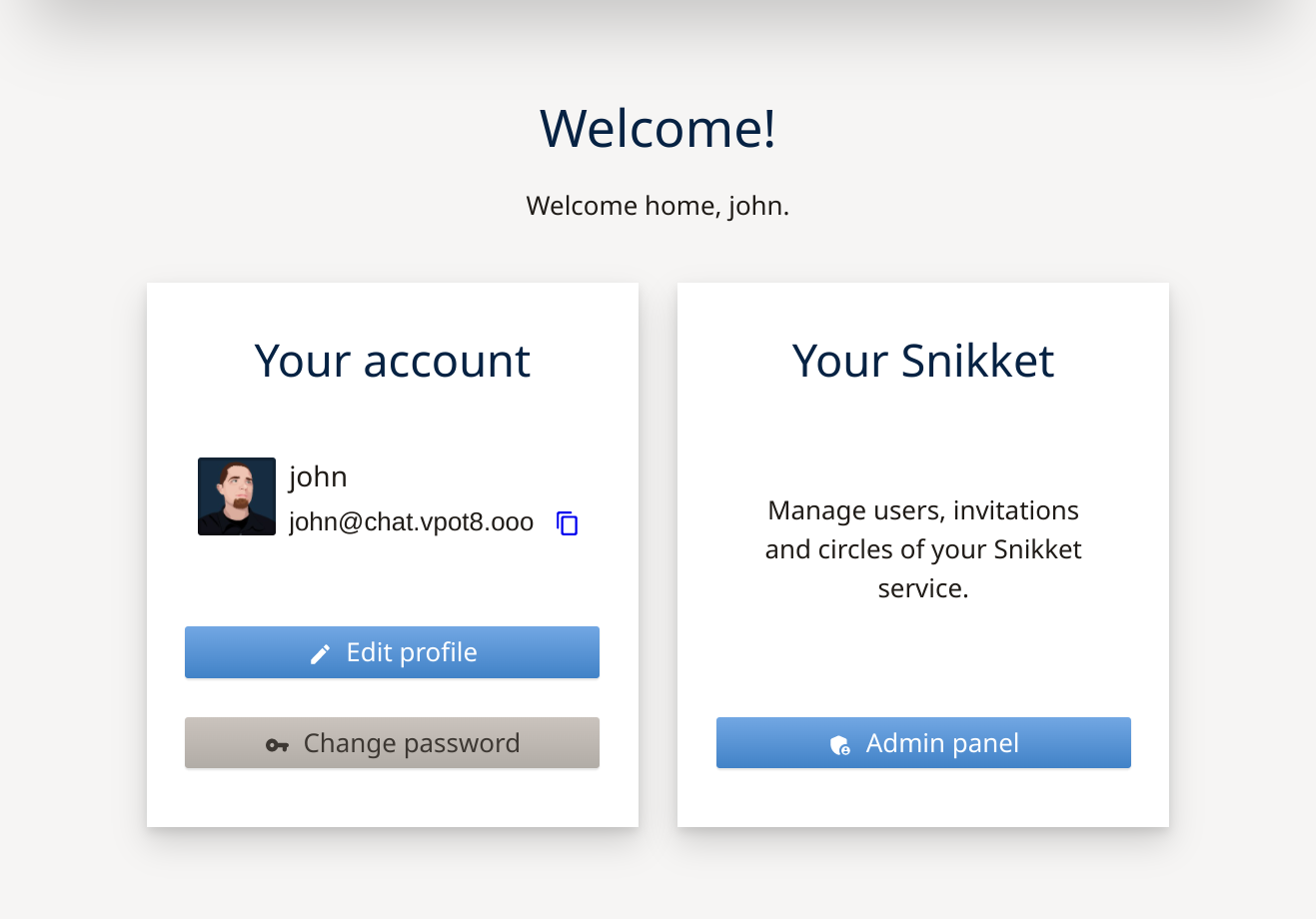

Welcome home, John!

Invite more users

Excellent, I've got a private chat server but no one to chat privately with7. Time to fix that, eh? I could use that docker exec snikket create-invite command line again to create another invite link, but I think I'll do that through the admin panel instead.

Snikket admin panel

Before I get into the invite process, I'm going to take a brief detour to discuss circles. For those of you who didn't make a comfortable (though short-lived) home on Google+8, Snikket uses the term circle to refer to social circles within a local community. Each server gets a circle created by default, and new users will be automatically added to that circle. Users within the same circle will appear in each other's contact list and will also be added into a group chat together.

It might make sense to use circles to group users based on how they know each other. There could be a circle for family, a circle for people who work(ed) together, a circle for the members of a club, and a circle for The Gang that gets together every couple of weeks for board games.

The Manage circles button lets you, well, manage circles: create them, add/remove users to them, delete them, whatever. I just created a new circle called "Because Internets".

Circles!

That yellow link icon in the Actions column will generate a one-time use link that could be used to invite an individual user to create an account on the server and join the selected circle.

Instead, I'll go back to the admin area and click on the Manage invitations button, which will give me a bit more control over how the invite works.

Creating an invitation

As you can see, this page includes a toggle to select the invitation type:

  • Individual invitations are single-use links so should be used for inviting one user at a time.
  • Group invitation links can be used multiple times by multiple users.

Whichever type is selected, I also need to select the time period for which the invitation link will be valid as well as which circle anyone who accepts the invitation will be added to. And then I can generate and share the new invite link as needed.

New invite link

Join me?

Speaking of which, here's that invite link in case anyone wants to check out Snikket from the client side of things (and/or just talk to me about stuff9):

https://chat.vpot8.ooo/invite/Qrsc5IaVNGM8giVH/

Or if you've already got a Snikket and/or XMPP account, hit me up from your own server:

john@chat.vpot8.ooo

Advanced configuration

Okay, so that covers everything that's needed for a standard Snikket installation in OCI. The firewall configuration in particular would have been much simpler in GCP (where I could have used ufw) but I still think it's overall pretty straight forward. But what about my case where I wanted to put Snikket on the same server as my Matrix instance? Or the steps I needed to move Snikket from the GCP server onto the OCI server?

Let's start with adjusting the Caddy reverse proxy to accomodate Snikket since that will be needed before I can start Snikket on the new server.

Caddy reverse proxy

Remember Caddy from last time? It's a super-handy easy-to-configure web server, and it greatly simplified the reverse proxy configuration needed for my Matrix instance.

One of the really cool things about Caddy is that it automatically generates SSL certificates for any domain name you tell it to serve (as long as the domain ownership can be validated through the ACME challenge process, of course). But Snikket already handles its own certificates so I'll need to make sure that Caddy doesn't get in the way of those challenges.

Fortunately, the Snikket reverse proxy documentation was recently updated with a sample config for making this happen. Matrix and Snikket really only overlap on ports 80 and 443 so those are the only ports I'll need to handle, which lets me go for the "Basic" configuration instead of the "Advanced" one. I can just adapt the sample config from the documentation and add that to my existing /etc/caddy/Caddyfile alongside the config for Matrix:

 1http://chat.vpot8.ooo,
 2http://groups.chat.vpot8.ooo,
 3http://share.chat.vpot8.ooo {
 4        reverse_proxy localhost:5080
 5}
 6
 7chat.vpot8.ooo,
 8groups.chat.vpot8.ooo,
 9share.chat.vpot8.ooo {
10         reverse_proxy https://localhost:5443 {
11                transport http {
12                        tls_insecure_skip_verify
13                }
14        }
15}
16
17matrix.bowdre.net {
18        reverse_proxy /_matrix/* http://localhost:8008
19        reverse_proxy /_synapse/client/* http://localhost:8008
20}
21
22bowdre.net {
23        route {
24                respond /.well-known/matrix/server `{"m.server": "matrix.bowdre.net:443"}`
25                redir https://virtuallypotato.com
26        }
27}

So Caddy will be listening on port 80 for traffic to http://chat.vpot8.ooo, http://groups.chat.vpot8.ooo, and http://share.chat.vpot8.ooo, and will proxy that HTTP traffic to the Snikket instance on port 5080. Snikket will automatically redirect HTTP traffic to HTTPS except in the case of the required ACME challenges so that the certs can get renewed. It will also listen on port 443 for traffic to the same hostnames and will pass that into Snikket on port 5443 without verifying certs between the backside of the proxy and the front side of Snikket. This is needed since there isn't an easy way to get Caddy to trust the certificates used internally by Snikket10.

And then any traffic to matrix.bowdre.net or bowdre.net still gets handled as described in that other post.

Did you notice that Snikket will need to get reconfigured to listen on 5080 and 5443 now? We'll get to that in just a minute. First, let's get the data onto the new server.

Migrating a Snikket instance

Since Snikket is completely containerized, moving between hosts is a simple matter of transferring the configuration and data.

The Snikket team has actually put together a couple of scripts to assist with backing up and restoring an instance. I just adapted the last line of each to do what I needed:

1sudo docker run --rm --volumes-from=snikket \
2  -v "/home/john/snikket-backup/":/backup debian:buster-slim \
3  tar czf /backup/snikket-"$(date +%F-%H%m)".tar.gz /snikket

That will drop a compressed backup of the snikket_data volume into the specified directory, /home/john/snikket-backup/. While I'm at it, I'll also go ahead and copy the docker-compose.yml and snikket.conf files from /etc/snikket/:

1$ sudo cp -a /etc/snikket/* /home/john/snikket-backup/
2$ ls -l /home/john/snikket-backup/
3total 1728
4-rw-r--r-- 1 root root     993 Dec 19 17:47 docker-compose.yml
5-rw-r--r-- 1 root root 1761046 Dec 19 17:46 snikket-2021-12-19-1745.tar.gz
6-rw-r--r-- 1 root root     299 Dec 19 17:47 snikket.conf

And I can then zip that up for easy transfer:

1tar cvf /home/john/snikket-backup.tar.gz /home/john/snikket-backup/

This would be a great time to go ahead and stop this original Snikket instance. After all, nothing that happens after the backup was exported is going to carry over anyway.

1sudo docker-compose down
Update DNS

This is also a great time to update the A record for chat.vpot8.ooo so that it points to the new server. It will need a little bit of time for the change to trickle out, and the updated record really needs to be in place before starting Snikket on the new server so that there aren't any certificate problems.

Now I just need to transfer the archive from one server to the other. I've got Tailscale11 running on my various cloud servers so that they can talk to each other through a secure WireGuard tunnel (remember WireGuard?) without having to open any firewall ports between them, and that means I can just use scp to transfer the file without any fuss. I can even leverage Tailscale's Magic DNS feature to avoid worrying with any IPs, just the hostname registered in Tailscale (chat-oci):

1scp /home/john/snikket-backup.tar.gz chat-oci:/home/john/

Next, I SSH in to the new server and unzip the archive:

1$ ssh snikket-oci-server
2$ tar xf snikket-backup.tar.gz
3$ cd snikket-backup
4$ ls -l
5total 1728
6-rw-r--r-- 1 root root     993 Dec 19 17:47 docker-compose.yml
7-rw-r--r-- 1 root root 1761046 Dec 19 17:46 snikket-2021-12-19-1745.tar.gz
8-rw-r--r-- 1 root root     299 Dec 19 17:47 snikket.conf

Before I can restore the content of the snikket-data volume on the new server, I'll need to first go ahead and set up Snikket again. I've already got docker and docker-compose installed from when I installed Matrix so I'll skip to creating the Snikket directory and copying in the docker-compose.yml and snikket.conf files.

1sudo mkdir /etc/snikket
2sudo cp docker-compose.yml /etc/snikket/
3sudo cp snikket.conf /etc/snikket/
4cd /etc/snikket

Before I fire this up on the new host, I need to edit the snikket.conf to tell Snikket to use those different ports defined in the reverse proxy configuration using a couple of SNIKKET_TWEAK_* lines:

1SNIKKET_DOMAIN=chat.vpot8.ooo
2SNIKKET_ADMIN_EMAIL=ops@vpot8.ooo
3
4SNIKKET_TWEAK_HTTP_PORT=5080
5SNIKKET_TWEAK_HTTPS_PORT=5443
6SNIKKET_TWEAK_TURNSERVER_MIN_PORT=60000
7SNIKKET_TWEAK_TURNSERVER_MAX_PORT=60100

Alright, let's start up the Snikket server:

1sudo docker-compose up -d

After a moment or two, I can point a browser to https://chat.vpot8.ooo and see the login screen (with a valid SSL certificate!) but I won't actually be able to log in. As far as Snikket is concerned, this is a brand new setup.

Now I can borrow the last line from the restore.sh script to bring in my data:

1sudo docker run --rm --volumes-from=snikket \
2  --mount type=bind,source="/home/john/snikket-backup/snikket-2021-12-19-1745.tar.gz",destination=/backup.tar.gz \
3  debian:buster-slim \
4  bash -c "rm -rf /snikket/*; tar xvf /backup.tar.gz -C /"

If I refresh the login page I can now log back in with my account and verify that everything is just the way I left it back on that other server:

Welcome (back) home, John!

And I can open the Snikket client on my phone and get back to chatting - this migration was a success!


  1. John laughed at a message. ↩︎

  2. Snikket currently has clients for Android and iOS with plans to add a web client in the future. ↩︎

  3. That said, Snikket is built on the XMPP messaging standard which means it can inter-operate with other XMPP-based chat networks, servers, and clients - though of course the best experience will be had between Snikket servers and clients. ↩︎

  4. By default Snikket can use any UDP port in the range 49152-65535 for TURN call data but restricting it to 100 ports should be sufficient for most small servers. ↩︎

  5. Get it? vpotatooo? Sometimes my genius... it's almost frightening. ↩︎

  6. It's also easy for the administrator to generate password reset links for users who need a new password. ↩︎

  7. The ultimate in privacy? ↩︎

  8. Too soon? Yep. Still too soon. ↩︎

  9. I'm also open to discussing things↩︎

  10. Remember that both Caddy and Snikket are managing their own fully-valid certificates in this scenario, but they don't necessarily know that about each other. ↩︎

  11. More on how I use Tailscale here↩︎

More Projects
